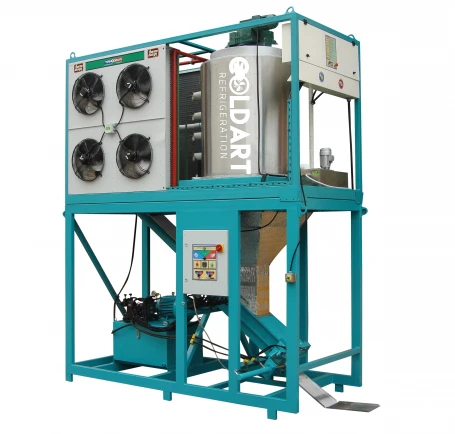

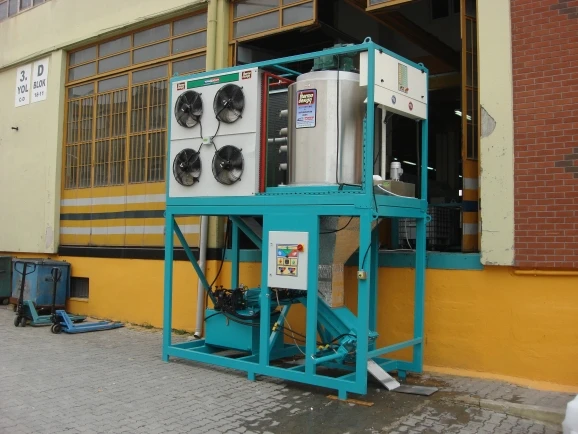

BLOCK-CP 10 Ts

Flake Ice Machine (Fresh Water)

TERMODESİGN block ice machines more useful than the old system has a dynamic and intelligent design. It allows you to obtain ice blocks by pressing the ice produced by the flake ice machine. With the Block ice you can change the width and height by adjusting the electronic control panel, this feature is a feature that most distinguishes from others of our product, so that, by simply setting timing can produce the same block of ice in the ice machine in different capacities.
It presents you the following advantages:
* Clean and Hygienic
* Fast & Easy to Use
* Mold & Glycol Brine None None
* Changeable Ice Measurements
* New Design & New Ice Technology
* Consistent size, shape and weight of the ice production
* Possibility of use as ice sheets or blocks
* Blocks perfectly suited to stacking in the freezer and shelf
* Hydraulic system
* Continuous Production Facility
* One man operation and work
* Never hold the ice and generate new production counts.

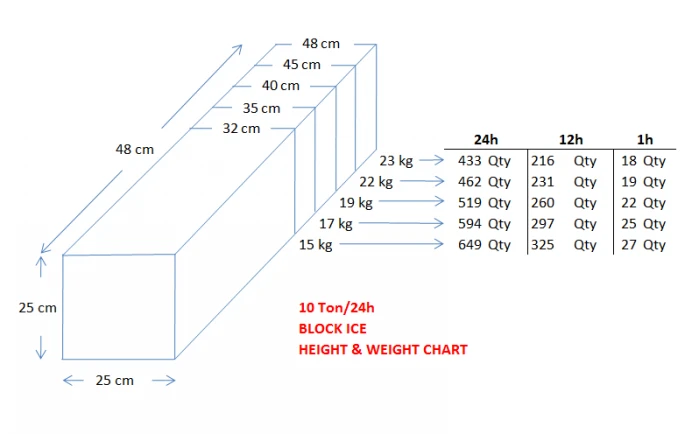

All Block Dimensions and Weights by model:
Block ice size: 15 x 15 x 30 cm. 5kg
Block ice size: 20 x 20 x 50 cm. 15kg.
Block ice size: 25 x 25 x 50 cm. 23kg.

TECHNICAL INFORMATION

Model Name BLOCK-CP 10 Ts

Flake Ice Capacity (Per Day) 10000 kg/24h

Block Ice Capacity (Per Day) 434 pieces

Block Ice Capacity (Per Hour) 18 pieces

Block Ice Size 25x25x48 cm

Block Ice Weight 23 kg

Cooling Capacity 50300 watt

Compressor Displacement 154,4 m3/h

Compressor Type Semi Hermetic

Compressor Power 40 HP

Compressor Electric Power 27,4 kw/h

Compressor Absorbed Current 47,5 Amp

Refrigerants R404

Dimensions (WxLxh) 1370x3380x4500 mm

Ice Discharge Outlet Size 920 mm

Hydrolic Engine Motor Power 5,5 Kw.

Weight ~3850 kg

WORKING CONDITIONS

Water Type Fresh Water

Water Inlet Temperature 20 ℃

Outside Temperature 43 ℃

Condensation Temperature 33 ℃

Evaporation Temperature -22 ℃

Ice Thickness 1,8 - 2,2 (Flake) mm

Required water pressure 1 bar

Energy 380V/50Hz/3Ph
