Exhaust Fan

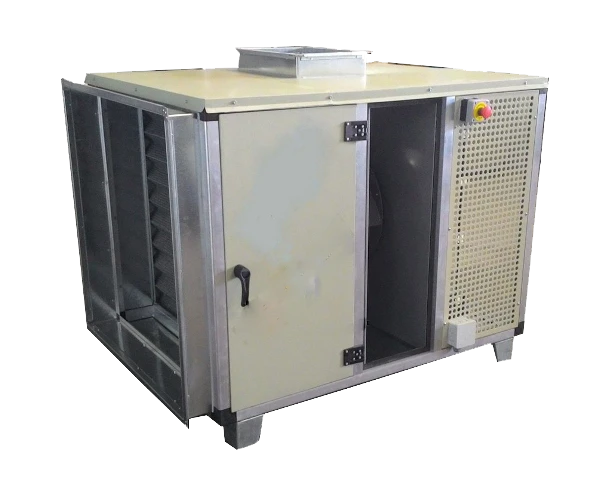

Aspirator/Ventilator Unit
General
Between 1000 – 90000m3/h air flow capacity.12 different types and dimensions. They can be demounted and be mounted easily through modular system
Unit Structure
Units are type of modular and can be shipped as dismantle on demand.Assembling of the units is possible as internal through nuts and bolts.It is made use the neoprene tightness gasket on surface of the units’ connection points.It is manufactured using service lids,hinges,clips or door handles.These materials are durable against corrosion.There is observation window,start-stop buton,door switch on service lids and lighting fixture in the units.There are technical information stickers on the device.Units are durable to 25000 pa pressure and are designed as impermeability under this degree .
Carcasses
Special structural aluminium or optional anodized structural aluminium carcass.It is made use carcass plastic corner as size of 40 for device which capacity is between 1..000 m³/h, size of 50 for device which capacity is too big of 15.000m³/h.Carcasses consist minimium 2 mm gravity structural aluminium combining corner piece is made of aluminum cast iron materials from PVC 40-20 mm 50-25 mm profile
Panels
All panels are made as double-hull sandwich structural.The gravity of internal steel metal is 0,60 mm(standart) and external steel metal gravity is changeable for size of device.In generally surface of panels are manufactured through PVC covered galvanize steel and also electorstatics paint covered is available.For isolation,it is injected 20-25mm polyurethane or made use rock wool as capacity.
Fans
Plug type fans Nicotra marked,,dynamically balanced,thin wings,with flexiblesed for making the device.
Electricity Motors
Tri-phase motors(380V-50hz),Mono-phase also usable.Motors are safed IP54 and IP55 class.Optionally can be used as twin cycle.
Frequency Driver
All motors powered with frequency driver for fixing the fan speed
