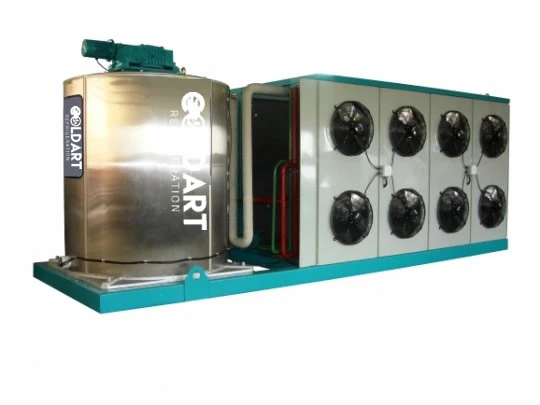

F200 C

Flake Ice Machine (Fresh Water)

Works with fresh water. In standard operating conditions and it can operate seamlessly in tropical conditions. Quiet and highly efficient. With the vertical type evaporator it produces hygienic ice and can run endlessly. The cooling equipment consists of high-quality equipment used in European norms.

• Ice generators are air-cooled condenser, water cooled optional.
• Gear motor, water pump and, optionally, salt mixing pump control box.
• ice blade and chassis stainless steel.
• The body is made of painted steel with anti corossiv
• garbon steel drums are covered.
• or semi-hermetic screw compressors is.
• R404A, R507 or R22 refrigerant.
• High condenser and fan capacity has gone through very rigorous testing.

TECHNICAL INFORMATION

Model Name F200 C

Ice Capacity (Per Day) 20000 kg/24h

Ice Capacity (Per Hour) 844 kg/h

Cooling Capacity 100600 watt

Compressor Displacement 308,8 m3/h

Compressor Power 2x40 HP

Compressor Electric Power 54,8 kw/h

Compressor Absorbed Current 95 Amp

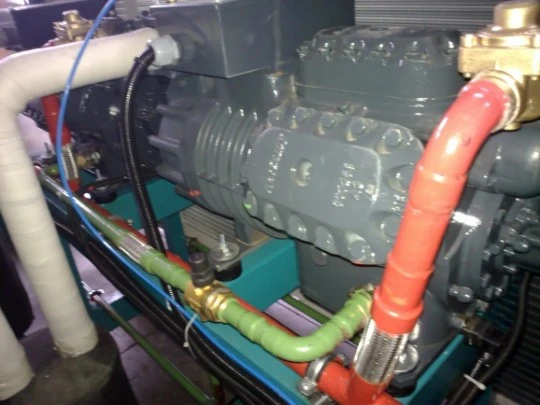

Compressor Type Semi Hermetic

Condenser Type Air Cooling

Evaporator Type Vertical Drum

Refrigerants R404a

Dimensions (WxLxh) 4700x2150x2250 mm

Ice Discharge Outlet Size 1420 mm

Weight 4600 kg

WORKING CONDITIONS

Water Inlet Temperature 20 ℃

Outside Temperature 33 ℃

Condensation Temperature 43 ℃

Evaporation Temperature -22 ℃

Ice Thickness 1,8 - 2,2 mm

Required water pressure 1,5 bar

Energy 380V/50hz/3Ph

Water Type Fresh Water
